INLINE HING TYPE JOINT CLOSURE IP68 FLIP OVER

  • Category : Fiber Optic, Fiber Management Enclosures, Inline Enclosures,
  • Part Number : DC–JCIH096F-FO
Download datasheet images

INLINE HING TYPE JOINT CLOSURE IP68 FLIP OVER

Add to quote
Categories: , ,

Description

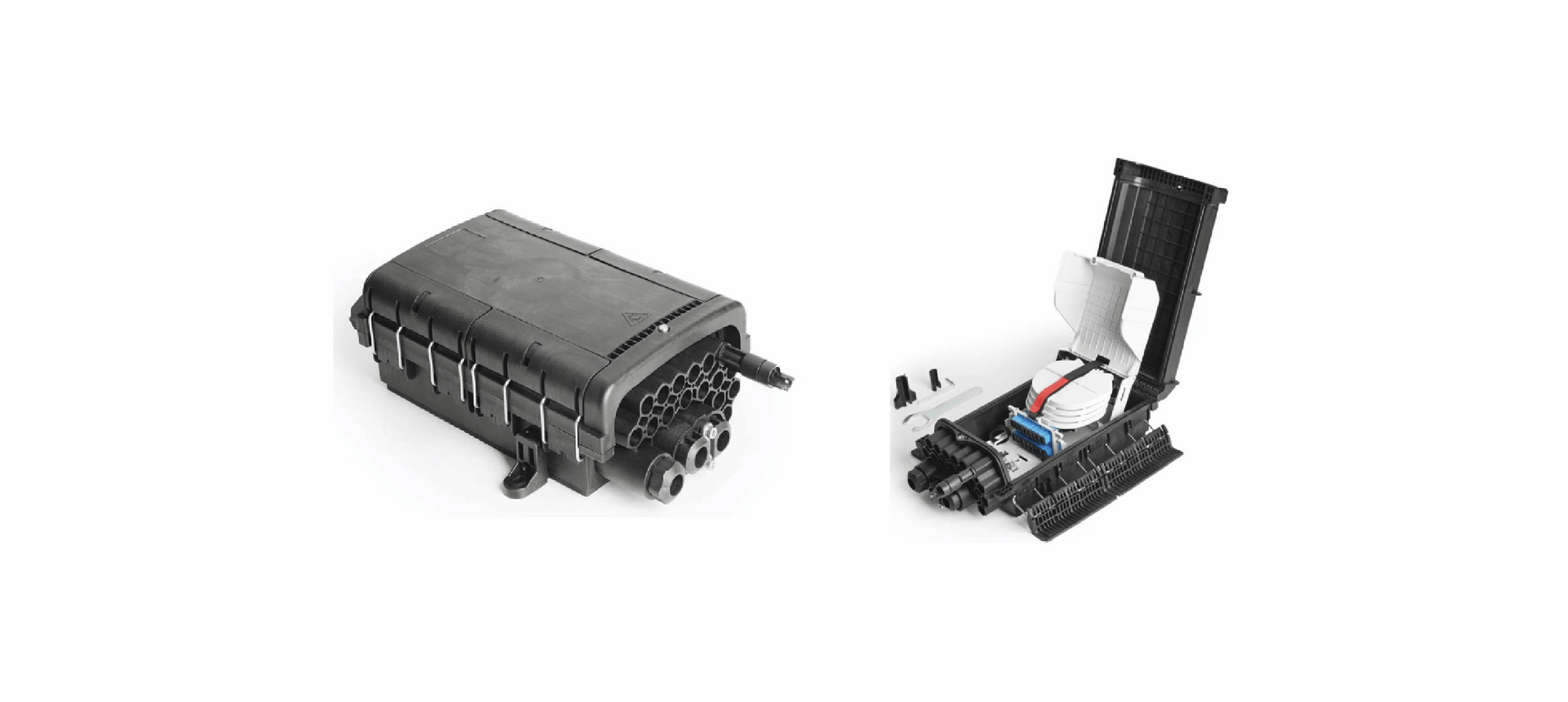

Datacom Flip over closure is used as a termination point for the feeder cable to connect with the drop cable in network system. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as multi-purpose application. It could be installed in aerial, wall, pole and pipeline-mounted mode.

Application

  • Aerial
  • Wall
  • Pole Mounting

Features

  • Cable ports: 1 port for uncut cable Φ 10-17.5 mm, 1 pcs branch port for Φ 10-17.5 mm cable,16 pcs drop cable ports (applicable for 2*3mm soft cable or Φ3-8mm round cable).
  • All tray are hinged at one side, which is convenient for the operation of each fiber trays.
  • No screw flip over structure, support plug and play and fast open service for new subscribers.
  • Capacity: max capacity is 96F,support 4 pcs 24f trays. 16 pcs SC adaptor and mini splitter can be installed.
  • Production grade: Mechanical sealing mode, protection grade is up to IP 68.
  • Installation mode: Suitable for Aerial, Pipe line, Manhole, and Underground mounting.

Standards Compliance

  • ROHS

Ordering Information

Datacom Inline Hinge Type Joint Closure IP68 Rated With 96F Splice Tray Flip Over. > DC–JCIH096F-FO
