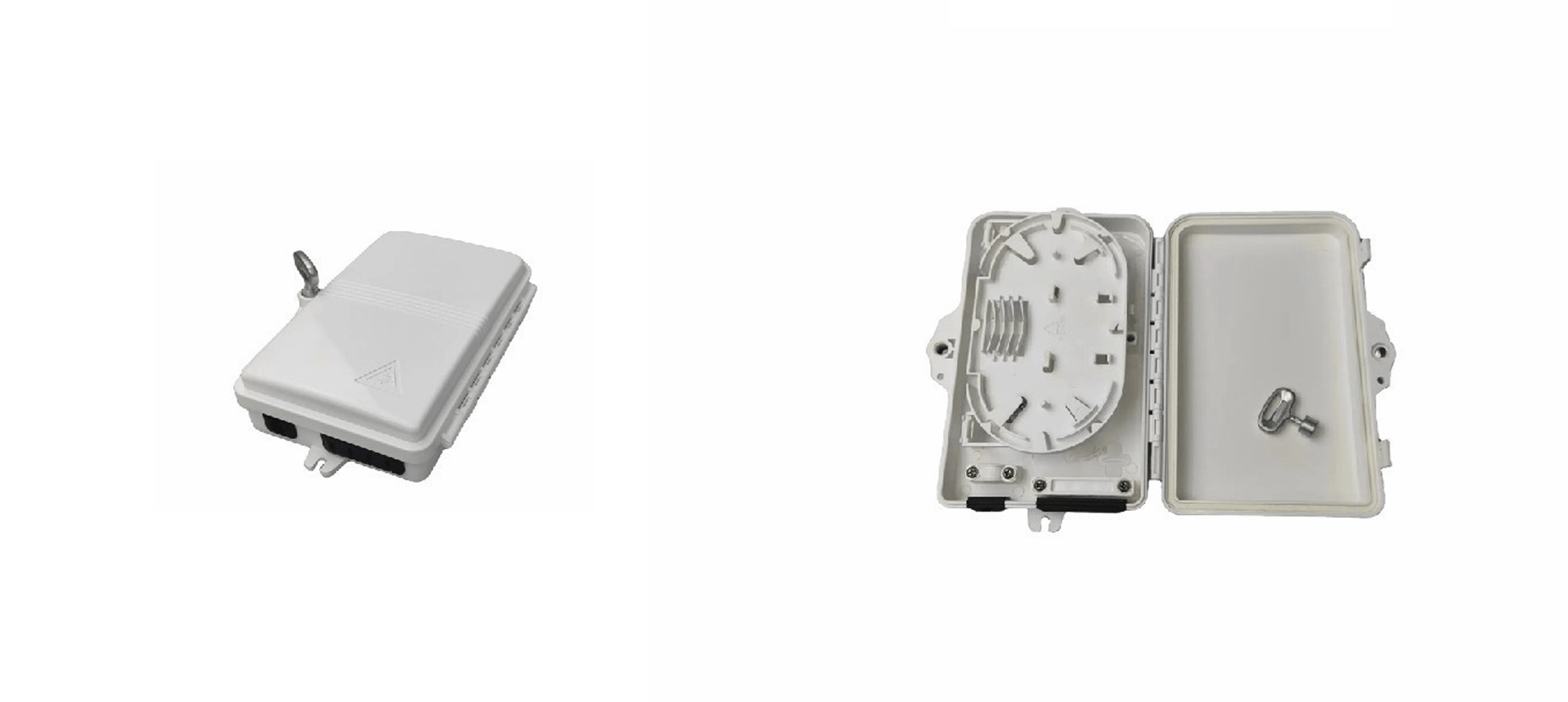

FIBER OPTIC TERMINATION BOX-IP RATED

  • Category : Fiber Optic, Fiber Management Enclosures, DIN Rail, Fiber Termination boxes,
  • Part Number : DC-FTB-04F65, DC-DIN-06FO, DC-FTB-08F65, DC-FTB-12F65
Download datasheet images

FIBER OPTIC TERMINATION BOX-IP RATED

Add to quote
Categories: , , ,

Description

Datacom Fiber optic termination box is a new product designed for outdoor fiber termination use and FTTH Application. All the outdoor rated FTB has IP55 & IP65 rated protection from environment. These fiber termination boxes are simple with a lightweight design, special snap clip close system convent for the user, protecting the fiber to pigtail splice. FTB can be mounted to Wall or Pole and adapters are not included in the standard delivery. SC/ LC adapters shall order separately.

Datacom DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected. All of the Din Rail Boxes can be fully populated.

Application

  • Industrial Application.
  • Outdoor WIFI applications.
  • FTTH applications- Indoor or outdoor.
  • Security System-Outdoor CCTV applications.
  • Used for wall-mounted applications.
  • Use indoor or out door to distribution fiber.

Features

  • High-quality plastic material box, with fire resistance dustproof, UV protection particularly robust cable.
  • Aluminum, electrostatic painting for Din Rail Fiber Optic Terminal Box.
  • 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports for Din Rail Fiber Optic Terminal Box.
  • Beautiful outside surface, impact structure and lightweight.
  • It Could be for wall mounting or pole mounting.
  • Suit for SC,LC, OR FC connector.
  • Special snap clip close system design is convenient for user operation.
  • Suit for outdoor or indoor cables in and out Max. Capacity is 8 cores.
  • The fusion capacity is total of 12 fibers on the top middle While the rear side of the middle plate could support 16-fibre fusion as well.

Standards Compliance

  • RoHS

Ordering Information

Datacom 04 Fiber Termination Box IP65 Unloaded. > DC-FTB-04F65

Datacom 06 Fiber Termination Box DIN Rail Mount IP44 Unloaded. > DC-DIN-06FO

Datacom 08 Fiber Termination Box IP65 Unloaded. > DC-FTB-08F65

Datacom 12 Fiber Termination Box IP65 Unloaded. > DC-FTB-12F65
