CAT8 S/FTP 23 AWG CABLE LSZH

Name: CAT8 S/FTP 23 AWG CABLE LSZH
SKU: 1030
Price: 2.00 USD
Availability: InStock

Categories: CAT8 Cable, Copper, Copper Cables

Description

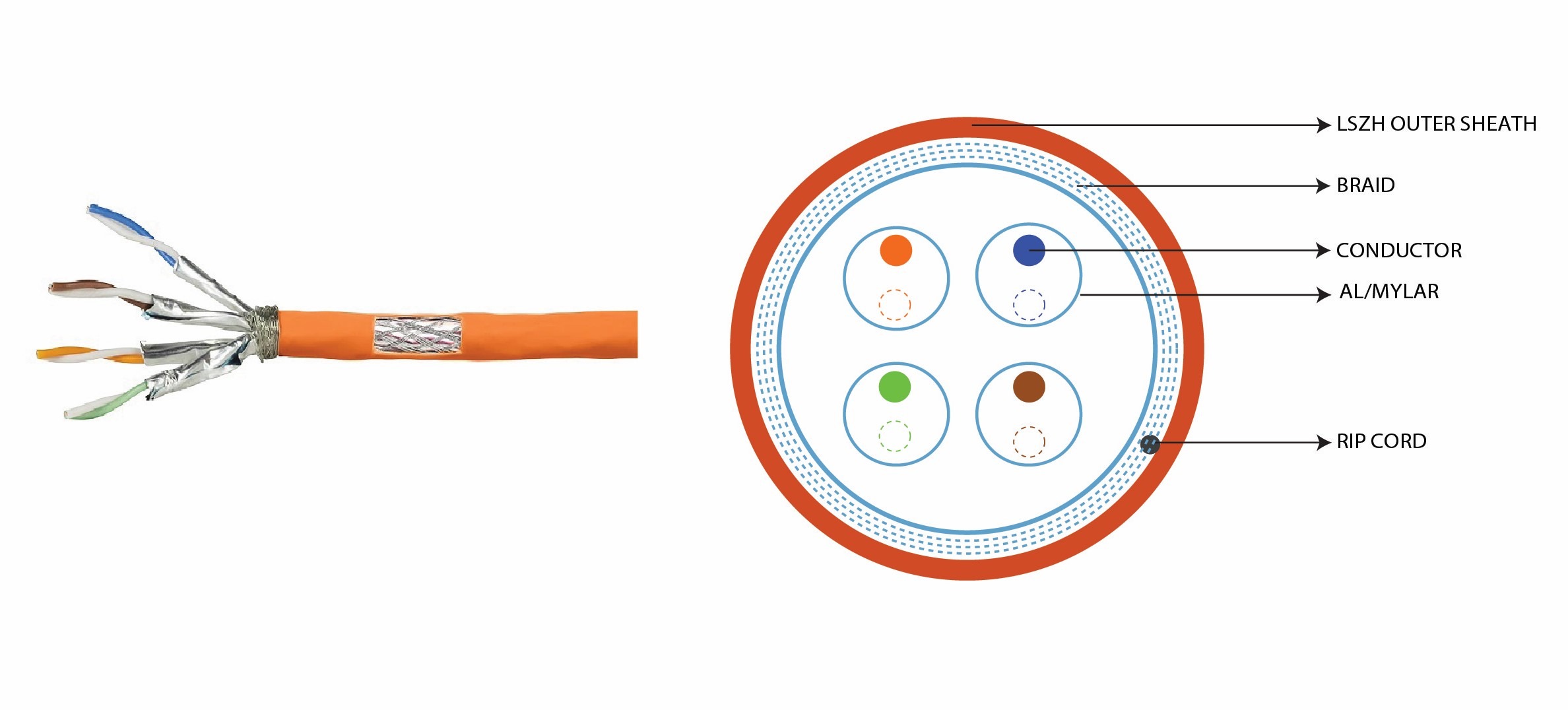

Datacom Category 8 cable exceeds the transmission performance requirements of IEC 61156-5 up to 2000 MHz. Category 8 cabling has a greater throughput capability; it can support the transmission of data up to 40Gbps over balanced twisted pair copper cabling. Datacom Cat 8 S/FTP cable shall have a nominal diameter of 8.4 mm. The cable shall be offered with a cable jacket meeting IEC 60332-1-2 flame rating (LSZH) The cable shall be constructed of 23-gauge copper conductors. The cable shall incorporate Mylar™/aluminum foil shields around each pair, with an overall braid. The system shall be classified as Cat 8 S/FTP construction. The Cat 8 system shall be third-party verified to meet ISO/IEC 11801 Class I performance requirements.

Application

Connect 40GBase-T networks or digital signage in your office school or retail business high-density server room or data center.
Deliver power to PoE devices, including network switches, security cameras and wireless access points, mounted in areas that are difficult to reach or have no electrical outlets.

Standards Compliance

• Complies with Euroclass Dca.
• ISO/IEC 11801 CLASS I and II.
• IEC 61156-9.
• RoHS 2 Compliant
• EN 50173-1
• EN 50288-11-1
• EN 50575:2014 (Euroclass) with a Dca rating
• IEEE 802.3bt PoE Type 1 (15.4 watts) formerly 802.3af,
Type 2 (30 watts) formerly 802.3at, Type 3 (60 watts),
Type 4 (90 watts).
• Power over Ethernet (PoE) applications up to
100 watts – maximum cable bundle limit of 100 cables.
• Cisco Universal Power Over Ethernet (UPOE)
applications up to 60 watts.
• Power over HDBaseTTM (PoH) applications up to
95 watts – maximum cable bundle limit of 100 cables.
• GHMT 30 Meter channel test with components report
is available

Features

With guaranteed performance to 2000MHz,Datacom Cat8 cables exceed the requirements of the International, European and USA cable standards, including ISO/IEC 11801, ANSI/TIA-568.2-D.
Included in the Datacom 25-Year System Warranty Program when used in conjunction with Datacom copper connectivity. System warranties are available for qualified projects installed by certified Partners.

Ordering Information

Datacom Cat8.1 23AWG TIA568 D-2 ISO/IEC 11801-1 25/40G S/FTP LSZH Dca Cable Orange. > DC-CL8XSF3OR
