CAT6A U/UTP 23 AWG CABLE LSZH

Name: CAT6A U/UTP 23 AWG CABLE LSZH
SKU: 1024
Price: 2.00 USD
Availability: InStock

Categories: CAT6A Cable, Copper, Copper Cables

Description

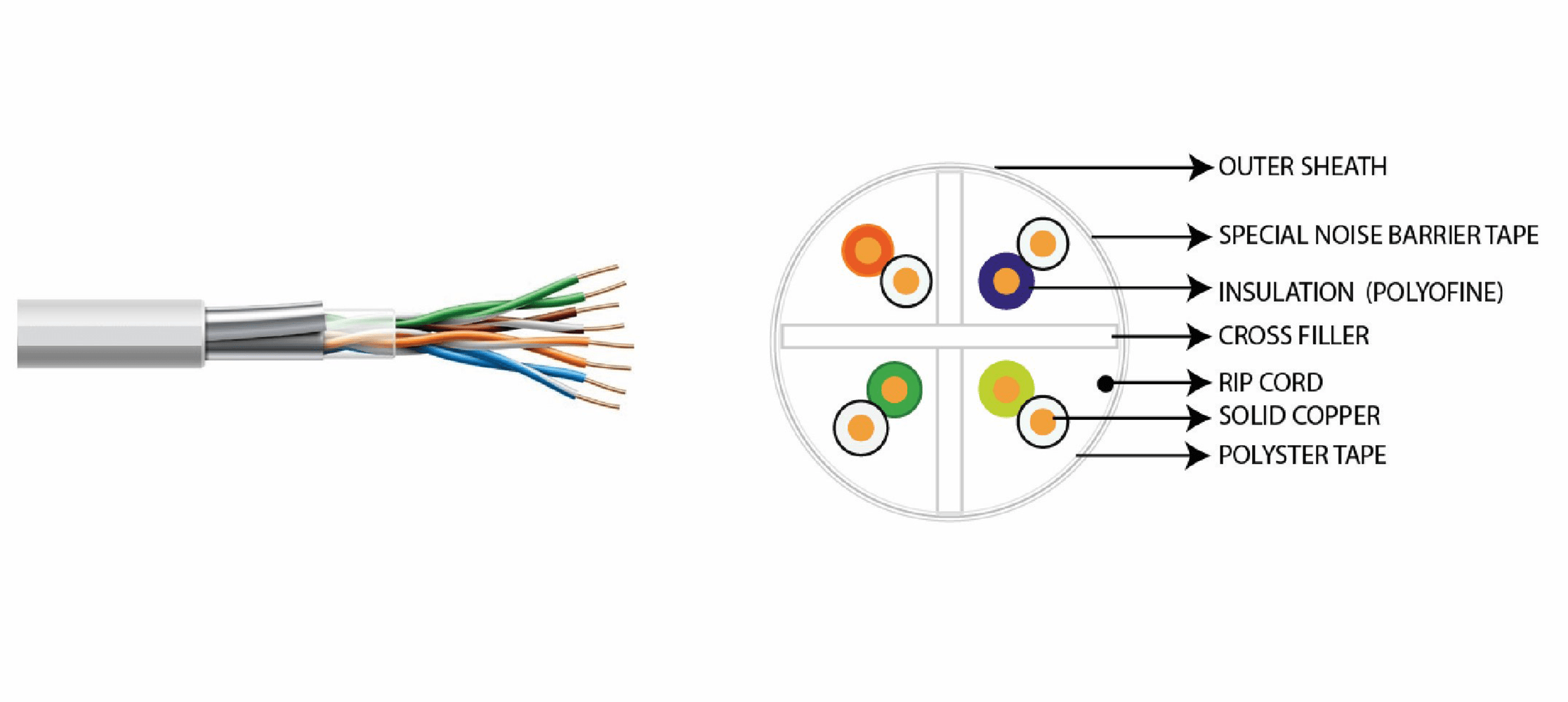

Datacom 6A unshielded LSZH Cable is specifically designed to support high-speed data network applications such as 10GBASE-The innovative design includes a Special noise barrier tape and polyester tape, which provides excellent Alien Crosstalk defense. The low diameter of the cable allows for a higher cable density in containment, reducing cost. DATACOM Cat 6A U/UTP cable shall have a nominal diameter of 7.0mm. The cable is constructed of 23-gauge copper conductors. It consists of 8 Copper Conductors, 2 conductors twisted together to form a pair. 4 Pairs are laid up together. Cat 6A Cables support up to 10 Gbps Data rates, PoE++, and are the ideal choice for high-speed LAN Solutions.

Application

100BASE-T through 10GBASE-T Ethernet.
Power over Ethernet (PoE)- IEEE 802.3bt Type 1 to 4.
ATM and token ring.
Data Center Server farm connectivity.

Features

Supports up to 500 MHz frequency.
IEEE 802.3bt-2018.
ANSI/TIA-568.2-D and ISO 11801 Cat 6A standard verified.
No grounding or bonding required.
Low overall cable diameter- 7mm (nom.).
Backward compatible with legacy protocols and applications.
The product is 3rd party verified to ANSI/TIA-568.2-D and ISO 11801 Category 6A standard.

Standards Compliance

ANSI/TIA-568.2-D
IEC 60603-7
IEC 60512-99-002
ISO/IEC 11801-1 CLASS E/EA
IEEE 802.3BT TYPE 4 POE++ (4PPOE)
ROHS/REACH
ANSI/TIA-1096-A

Ordering Information

Datacom Cat 6A U/UTP 10G 4Pair 23AWG Cable (IEC 60332-1) (With Alien Cross Talk Barrier) – LSZH 305m/Box White > DC-CBL-C6A-UT-LSZH
